6MB Hydranor winch block designed for marine environments
Product number: 6mb_2

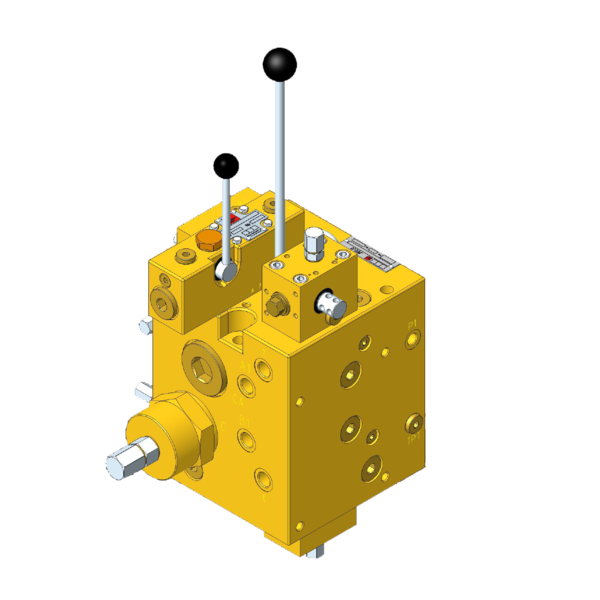

6MB Hydraulic Winch Block
The 6MB is a modular hydraulic winch block developed for marine environments. The block integrates the necessary functions for safe and efficient winch control, and can be installed as a stand-alone unit or mounted directly on the winch motor using an adapter.

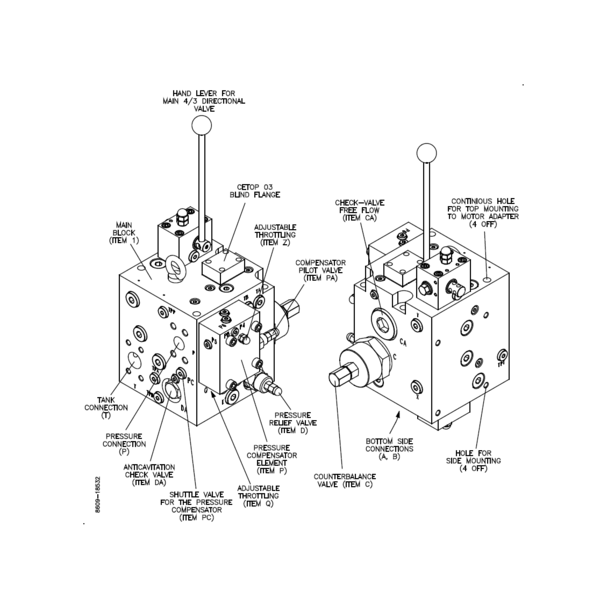

The standard valve configuration includes an integrated counterbalance valve, load-side safety valve, cross-line relief valve, make-up flow function and maximum flow adjustment. The system can be supplied with options such as hydraulic or electric remote control, two-speed operation, mooring tension, brake release, motor displacement shifting and motor pressure control.
Flow range: 120–1500 l/min
Maximum working pressure: 350 bar.
Product number: 6mb_3
Product number: 6mb_1
