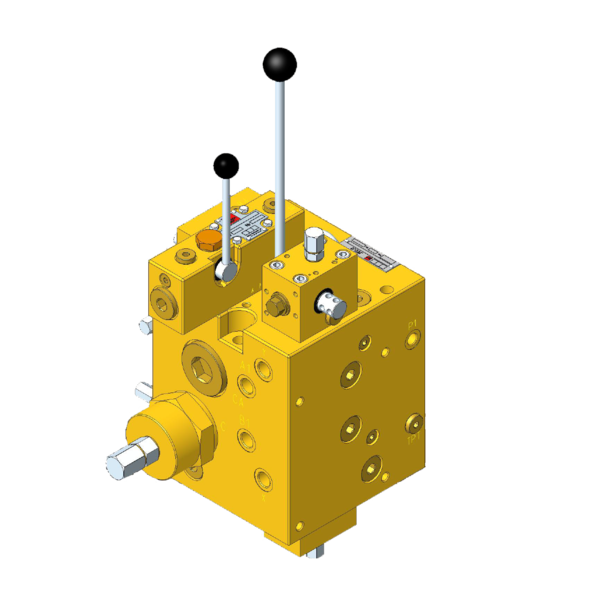

6MB winch block 150-320 l/min

6MB are a modular hydraulic winch block designed for marine environments and incorporates all the functions required to control a winch.

6MB winch block can be mounted as a standalone unit or directly on the motor using an adapter. Directional valve can be operated manually and/or remotely via proportional hydraulic or electric control.

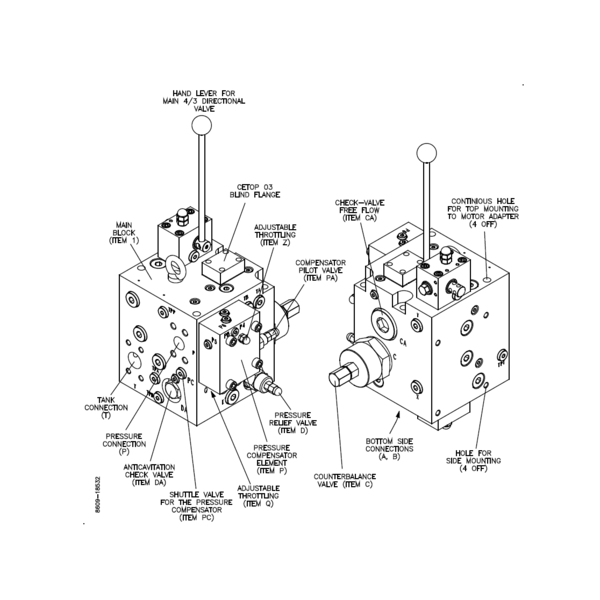

6MB block is equipped with a counterbalance valve required for lowering loads, a relief valve on the load side, and boosting system. 6MB system is prepared for a wide range of options for winch applications, such as switching the motor displacement, brake release, and pressure control on the motor. 6MB winch block covers a flow range of 120–1500 lpm, with a maximum working pressure of 350 bar.
