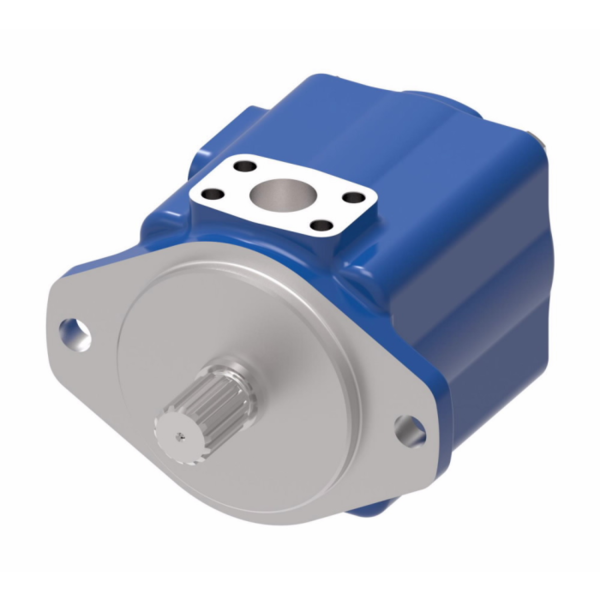

Vickers 3525VQ 30A21 86 AA 20

Double Vickers intravane pump, 3525VQ series in 30/21 gpm configuration (20 design). Heavy-duty straight keyed shaft (code 86), AA port orientation, clockwise rotation.

Model code: 3525VQ 30A21 86 AA 20 → 35VQ (shaft end) 30 gpm, 25VQ (cover end) 21 gpm; “86” straight keyed heavy-duty shaft; “AA” outlet port orientation per table; “20” design number.

• Operating pressure: up to 210 bar (typical rating for VQ double pumps).
• Displacement: 97.7 + 67.5 cm³/rev (equivalent to 30 + 21 US gpm at 1200 rpm, 7 bar).
• Rotation: clockwise (default when “L” is not specified).
• Shaft: straight keyed, heavy duty (code 86).
• Port orientation: “AA” (Outlet #1 opposite inlet; Outlet #2 135° CCW from inlet).
• Fluid: mineral-based hydraulic oil.

Applications: industrial and mobile hydraulic systems requiring two separate circuits or combined flow, with compact installation and cartridge-style serviceability.

Series info: Vickers/Eaton VQ high-speed, high-pressure intravane pumps with replaceable cartridges for fast maintenance and stable efficiency.
