Axis angle (°)
Bent 90°
Effect (kW)
20
Mounting flange
4h ISO3019-2 ø80mm
Working pressure (bar)
350
Seal material
VITON(FPM/FKM)
Shaft interface
DIN6885 ø20 k6
Displacement (cm³/rev)
12.6

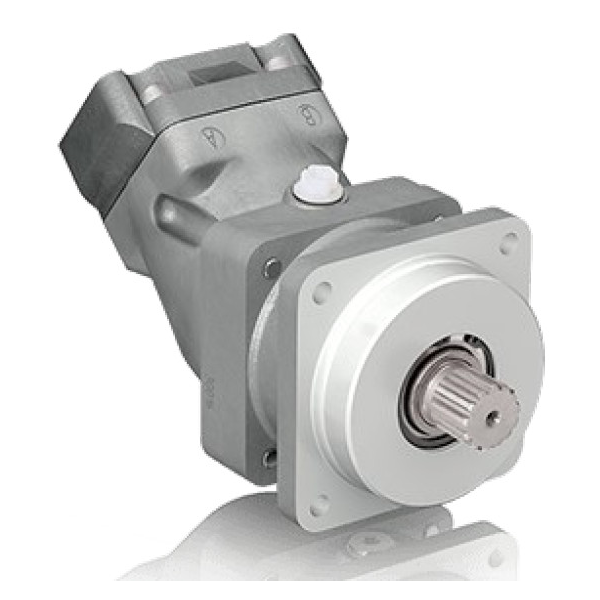

Sunfab SCM-012W-P-I41-K20-K3G-100 is a bent-axis axial piston motor with 12.6 cm³/rev displacement and 400 bar max pressure. ISO 80 flange, Ø20 mm keyed shaft, K3G side port (G 3/4”). Offers high efficiency, low pulsation, and stable operation in compact hydraulic systems.
