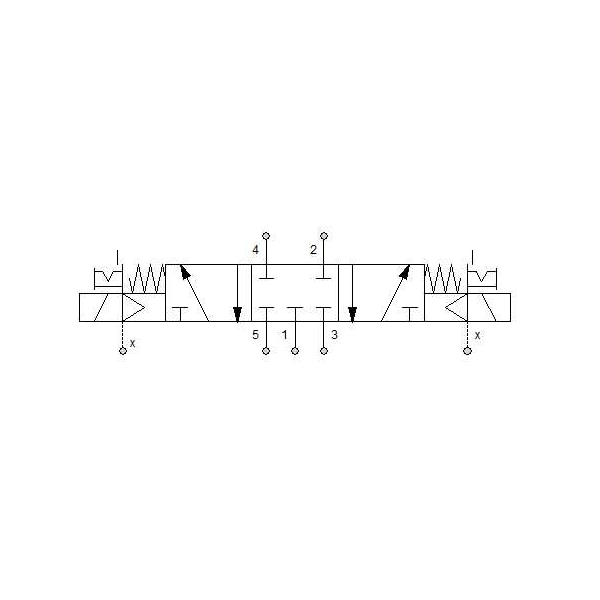

Solenoid valve Series 70 pilot assisted (SE) 5/3 1/4"

5/3 valve 1/4". Solenoid actuated pilot assisted (SE). Flow at 6 bar: 750 Nl/min (ΔP 0.5 bar), 1100 Nl/min (ΔP 1 bar).

Product number: SOV 36 SES CC

In stock Out of stock Few in stock

Manufacturer Part No: 7020022400
Activation type: Electric
Default position: CC - Closed center
Operating mode: Bi-stable
Port size and type: 1/4" BSP
Spool type: 5/3

Series 70 is part of Metal Work’s range of traditional valves. Available in sizes 1/8", 1/4", 3/8" and 1/2", in versions 3/2, 5/2, 5/3 and double 3/2, with mechanical, manual, pneumatic or electric actuation.

Key data:
- Operating pressure vacuum to 10 bar
- Temperature range: standard −10…+60 °C, LT version −40…+60 °C
- Flow at 6 bar 750 Nl/min (ΔP 0.5 bar), 1100 Nl/min (ΔP 1 bar)

Mounting: can be installed in line, onto a wall, directly on the cylinder with bracket or in series on a multiple/modular base.
Standards/certificates: ATEX, ISO 13849, SIL.

Applications: control of pneumatic actuators and cylinders in industrial automation.
