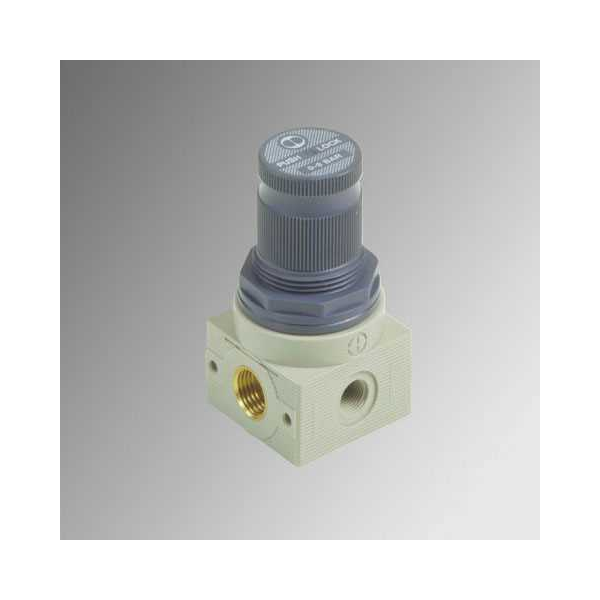

Pressure regulator BIT 1/8" 0-12 bar

Pressure regulator 1/8". Setting range: 0-12 bar. Capacity: 600 Nl/min at ΔP 0.5 bar.

Product number: 5107004

In stock Out of stock Few in stock

Manufacturer Part No: 5107004
Flow at max DP (lpm): 600
Pressure range (bar): 0-12
Port size and type: 1/8" BSP
Working pressure (bar): 13
Product series: BIT

Pressure regulator for stable outlet pressure.
Key data:
- Port size: 1/8".
- Setting range: 0-12 bar.
- Capacity: 600 Nl/min at ΔP 0.5 bar (6.3 bar).
Mounting:
- Can be mounted in any position.
- Follow the flow-direction arrow (IN → OUT).
- Mount on wall, with bracket, or supported by piping.
- Check setting range and lock knob/nut.
Standards/Certificates:
ATEX zone 1 (II 2G Ex h IIC T5 Gb X -10 °C Ta 50 °C / II 2D Ex h IIIC T100 °C Db X)
