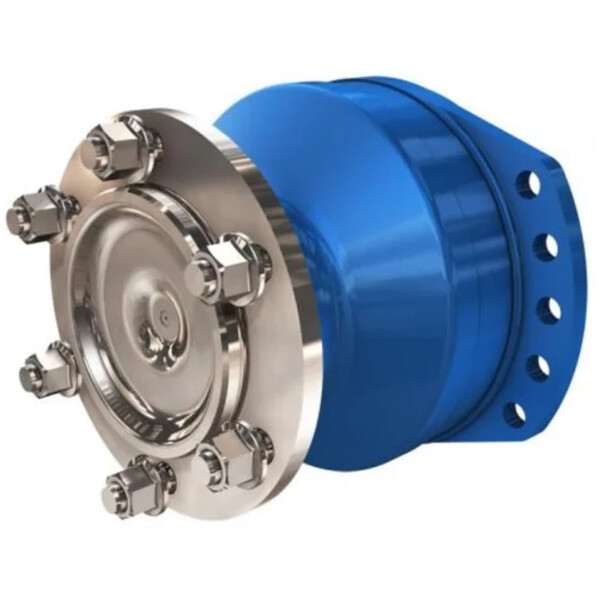

Poclain MS02 radial piston motor, 255 cm³/rev, 450 bar, ½'' BSP. Classic without brake, with reinforced seals (Y), high efficiency (H), hardened shaft (J) and extra drain (Z).
Product number: 2402B19844T
The Poclain MS02-2-123-R02-1120-YHJZ is a compact radial piston motor from the Poclain MS series. It features a nominal displacement of 255 cm³/rev and operates up to 450 bar. Connection type is ½'' BSP (ISO 1179-1). This Classic version is delivered without brake (R02) and equipped with reinforced seals, hardened shaft, and an additional drain for long service life and high efficiency.
| Nominal displacement | 255 cm³/rev |
| Max. working pressure | 450 bar |
| Max. speed | approx. 395 rpm |
| Max. power | 18 kW (1C) / 12 kW (2C) |
| Estimated max. torque | approx. 1800 Nm at 450 bar |
| Connection | ½'' BSP (ISO 1179-1) |
| Weight | 28 – 34 kg depending on configuration |
| Oil volume | 0.8 – 1.0 L |
| Series | MS02 Classic |
The MS series consists of high-efficiency radial piston motors designed for precise torque control, durability, and adaptability in both mobile and industrial systems. For full specifications and torque-speed curves, see the A36314W (MS02-MSE02 Technical Catalog).
