Directional valve for hydraulic circuits

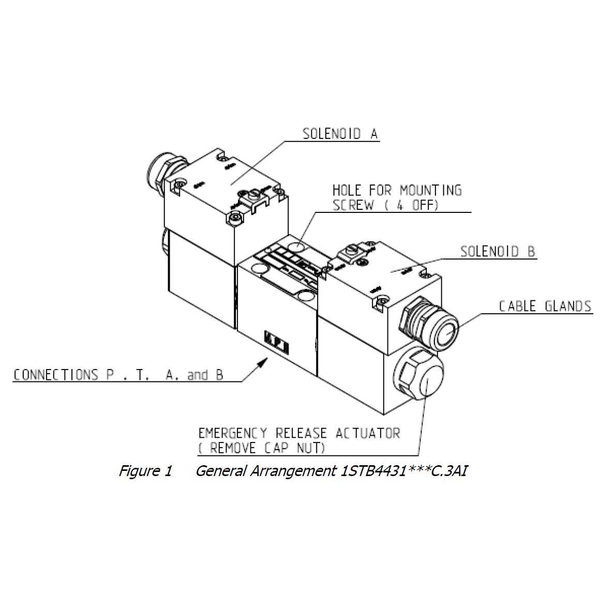

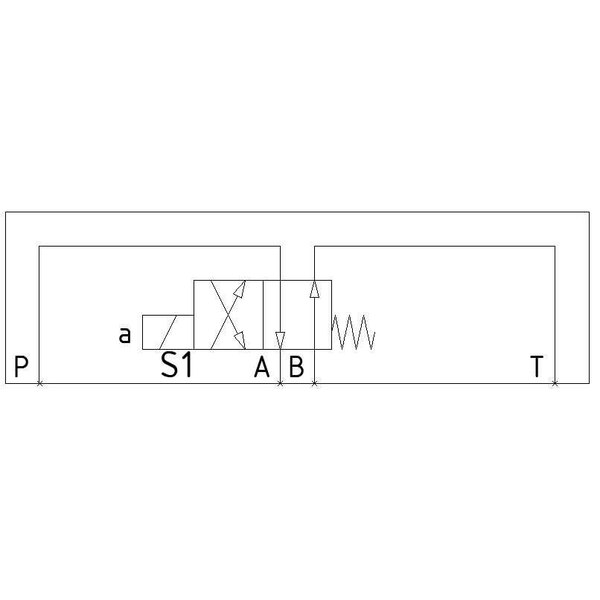

- Servi Hydranor 4/2 way valve 1STB44310J8FC.3AI
- Size: NG6 / CETOP 3
- Voltage: 24 V
- Application: Marine
Key specifications
- Interface: CETOP 3
- Flow capacity: 60 l/min
- Working pressure: 350 bar
Additional information
- Preferred subplate options: 1501.01 (CETOP 3 – 1 element, port under), 3001.00 (CETOP 3 – 1 element, port side), EM103/238Y (CETOP 3 – 2 elements), EM103/338Y (CETOP 3 – 3 elements), EM103/438Y (CETOP 3 – 4 elements), EM103/538Y (CETOP 3 – 5 elements)
