Directional valve for hydraulic circuits

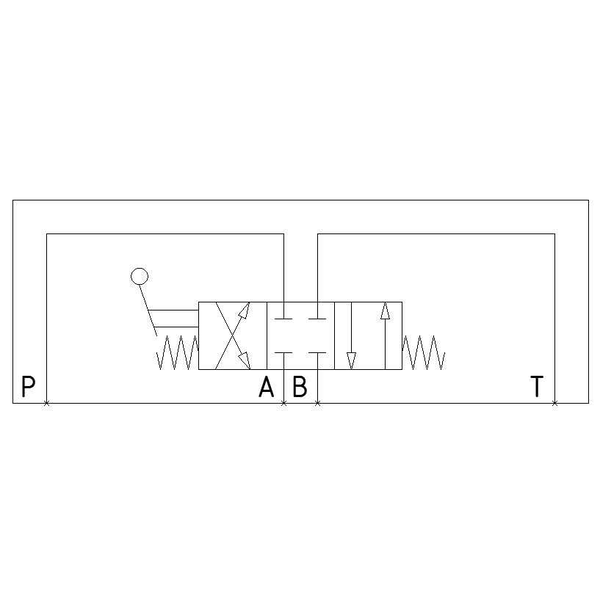

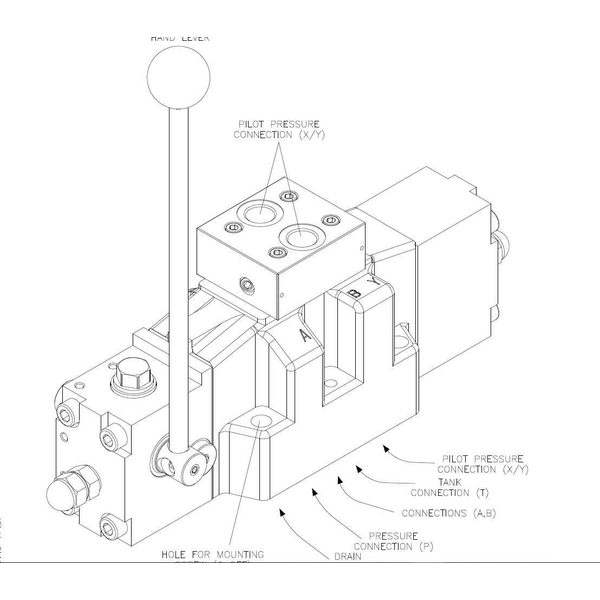

- Servi Hydranor 4/3 way manual valve 1STB4412031
- Size: NG10 / CETOP 5
- Application: Marine
Key specifications
- Interface: CETOP 5
- Flow capacity: 100 l/min
- Working pressure: 350 bar
Additional information
- Preferred subplate options: 1701.00 (CETOP 5 – 1 element), 2002.00 (CETOP 5 – 2 elements), 2003.00 (CETOP 5 – 3 elements), 2004.00 (CETOP 5 – 4 elements)
