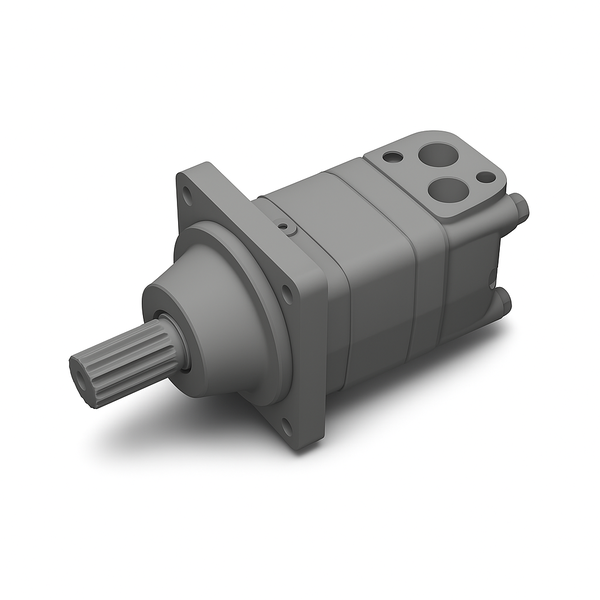

M+S MSW250SH/4 geroler motor

M+S MSW250SH/4 is a geroler motor with disc valve and geroler unit. Displacement 245.8 cm³ per revolution.

• Continuous pressure: 175 bar (intermittent: 210 bar)
• Continuous torque: 600 Nm (intermittent: 720 Nm)
• Continuous speed: 300 rpm (intermittent: 360 rpm)
• Intermittent power: 18.8 kW
• Shaft: SH/4, Ø32 mm straight; Ports: 2×G1/2" BSPP; Seal: standard; Weight: 10.0 kg

Applications: feeders, winches, conveyors.

Intermittent values can be used for short periods provided the motor’s thermal limits are not exceeded.
