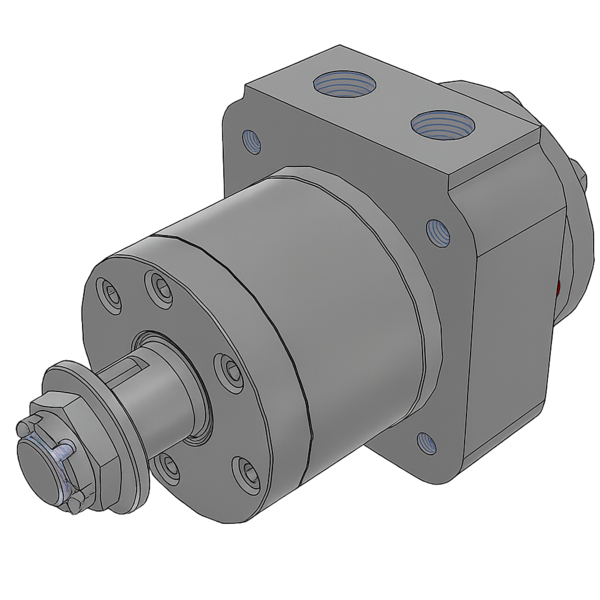

M+S MPWN50KD geroler motor

M+S MPWN50KD is a geroler motor with disc valve and geroler unit. Displacement 51.6 cm³ per revolution.

• Continuous pressure: 110 bar (intermittent: 140 bar)
• Continuous torque: 70 Nm (intermittent: 90 Nm)
• Continuous speed: 850 rpm (intermittent: 1020 rpm)
• Intermittent power: 5.3 kW
• Shaft: K 1:10 taper Ø16 mm; Ports: 2×G3/8" BSPP side ports, drain G1/4"; Seal: standard; Weight: 4.2 kg

Applications: small drives, conveyors, feed systems.

Intermittent values can be used for short periods provided the motor’s thermal limits are not exceeded.
