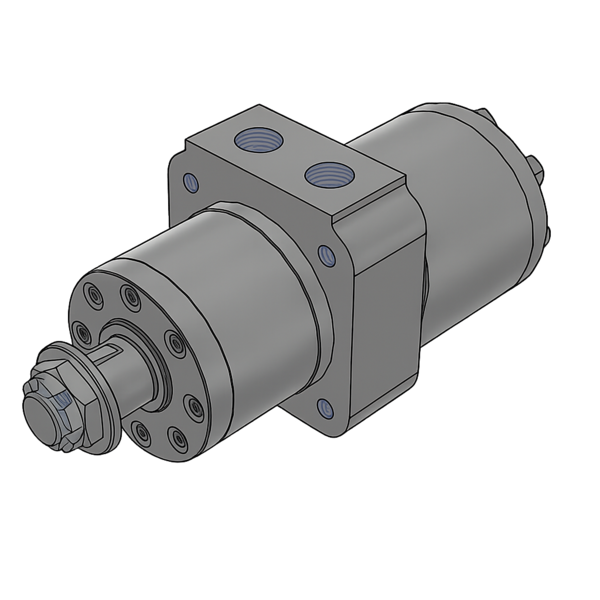

M+S MPWN400KD geroler motor

M+S MPWN400KD is a geroler motor with disc valve and geroler unit. Displacement 396 cm³ per revolution.

• Continuous pressure: 70 bar (intermittent: 115 bar)
• Continuous torque: 360 Nm (intermittent: 590 Nm)
• Continuous speed: 150 rpm (intermittent: 189 rpm)
• Intermittent power: 7.8 kW
• Shaft: K 1:10 taper Ø28.56 mm; Ports: 2×G1/2" BSPP side ports, drain G1/4"; Seal: standard; Weight: 7.6 kg

Applications: wheel drives, winches, feed equipment.

Intermittent values can be used for short periods provided the motor’s thermal limits are not exceeded.
