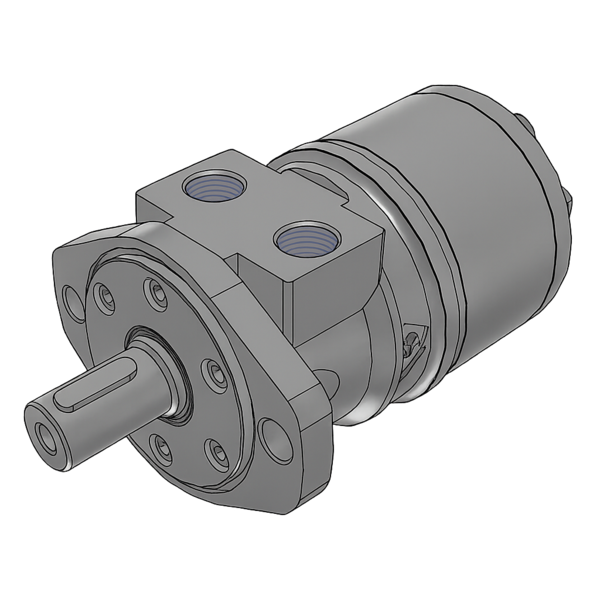

M+S HR400M2UP geroler motor

M+S HR400M2UP is a geroler motor with disc valve and geroler unit. Displacement 394.6 cm³ per revolution.

• Continuous pressure: 155 bar (intermittent: 210 bar)
• Continuous torque: 900 Nm (intermittent: 1220 Nm)
• Continuous speed: 200 rpm (intermittent: 240 rpm)
• Intermittent power: 18.5 kW
• Shaft: M2UP, SAE A 2-bolt; Ports: 2×G1/2" BSPP; Seal: standard; Weight: 10.2 kg

Applications: winches, wheel drives, feed equipment.

Intermittent values can be used for short periods provided the motor’s thermal limits are not exceeded.
