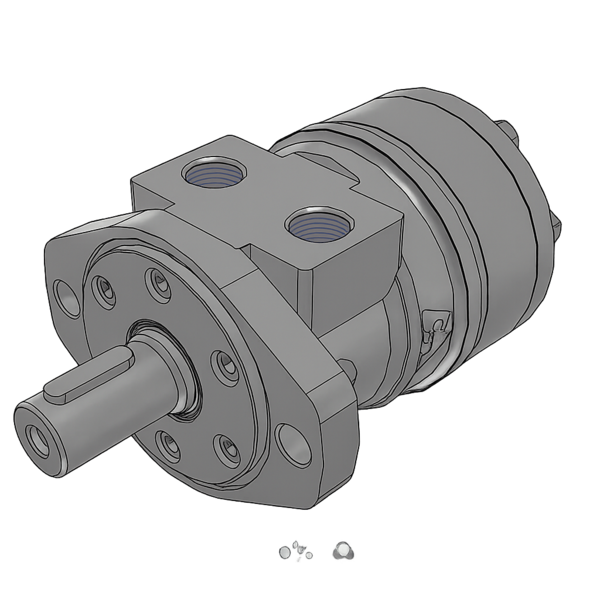

M+S HR200M2UP geroler motor

M+S HR200M2UP is a geroler motor with disc valve and geroler unit. Displacement 203.2 cm³ per revolution.

• Continuous pressure: 155 bar (intermittent: 210 bar)
• Continuous torque: 460 Nm (intermittent: 610 Nm)
• Continuous speed: 300 rpm (intermittent: 360 rpm)
• Intermittent power: 14.5 kW
• Shaft: M2UP, SAE A 2-bolt; Ports: 2×G1/2" BSPP; Seal: standard; Weight: 8.6 kg

Applications: winches, feeders, small wheel drives.

Intermittent values can be used for short periods provided the motor’s thermal limits are not exceeded.
