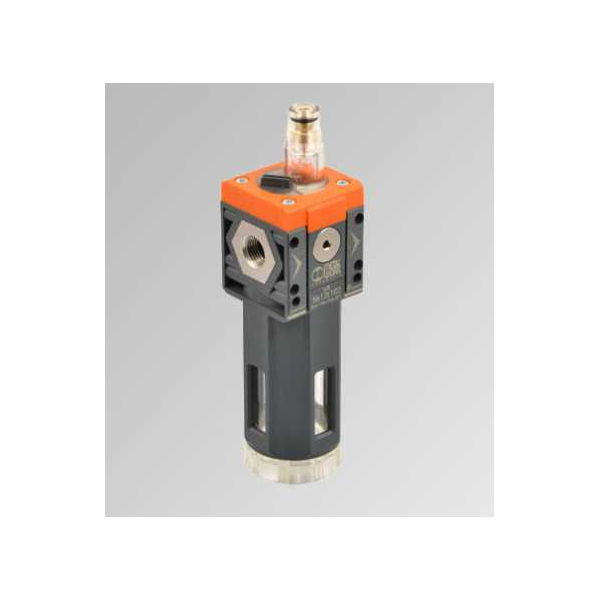

Mist lubricator for pneumatics. Key data: - Port size: 1". - Capacity: 6100 Nl/min at ΔP 0.5 bar (6.3 bar). Mounting: - Install vertically with the bowl facing down. - Follow the flow-direction arrow (IN → OUT). - Mount on wall, with bracket, or supported by piping. - Adjust oil rate after start-up; use sight glass as reference. Standards/Certificates: ATEX zone 2 (II 3G Ex h IIC T5 Gc -10 °C Ta 50 °C / II 3D Ex h IIIC T100 °C Dc)
