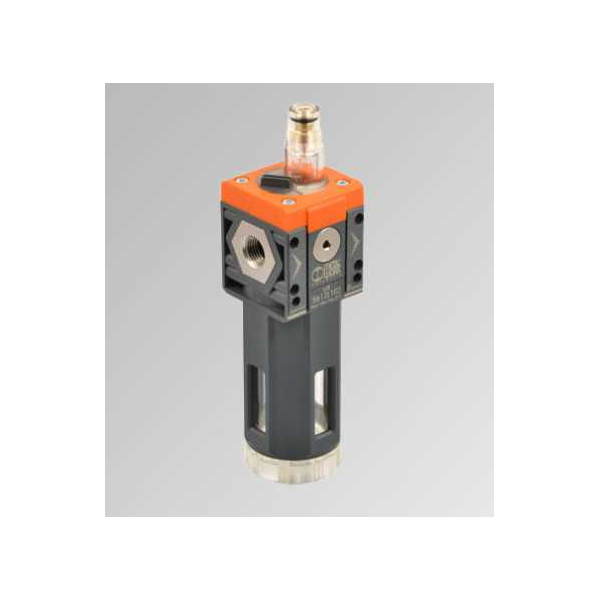

Lubricator Syntesi 1/2"

Capacity: 6100 Nl/min at ΔP 0.5 bar.

Product number: 5624L104

More than 5 in stock Special order – send inquiry Fewer than 5 in stock

Manufacturer Part No: 5624L104
Flow at max DP (lpm): 6100
Port size and type: 1/2" BSP
Working pressure (bar): 13
Product series: Syntesi

Mist lubricator for pneumatics.
Key data:
- Port size: 1/2".
- Capacity: 6100 Nl/min at ΔP 0.5 bar (6.3 bar).
Mounting:
- Install vertically with the bowl facing down.
- Follow the flow-direction arrow (IN → OUT).
- Mount on wall, with bracket, or supported by piping.
- Adjust oil rate after start-up; use sight glass as reference.
Standards/Certificates:
ATEX zone 2 (II 3G Ex h IIC T5 Gc -10 °C Ta 50 °C / II 3D Ex h IIIC T100 °C Dc)
