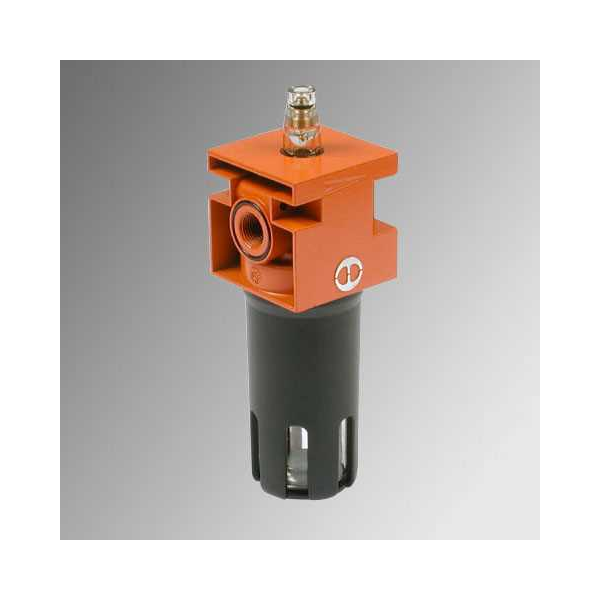

Lubricator New Deal 3/4"

Capacity: 9500 Nl/min at ΔP 0.5 bar.

Product number: 1523001

More than 5 in stock Special order – send inquiry Fewer than 5 in stock

Manufacturer Part No: 1523001
Flow at max DP (lpm): 9500
Port size and type: 3/4" BSP
Product series: NEW DEAL

Mist lubricator for pneumatics.
Key data:
- Port size: 3/4".
- Capacity: 9500 Nl/min at ΔP 0.5 bar (6.3 bar).
Mounting:
- Install vertically with the bowl facing down.
- Follow the flow-direction arrow (IN → OUT).
- Mount on wall, with bracket, or supported by piping.
- Adjust oil rate after start-up; use sight glass as reference.
Standards/Certificates:
ATEX zone 1 (II 2G Ex h IIC T5 Gb X -10 °C Ta 50 °C / II 2D Ex h IIIC T100 °C Db X)
