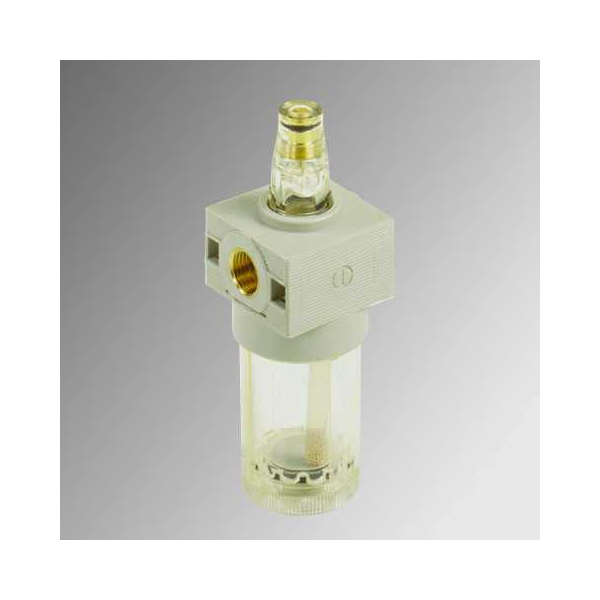

Mist lubricator for pneumatics. Key data: - Port size: 1/8". - Capacity: 710 Nl/min at ΔP 0.5 bar (6.3 bar). Mounting: - Install vertically with the bowl facing down. - Follow the flow-direction arrow (IN → OUT). - Mount on wall, with bracket, or supported by piping. - Adjust oil rate after start-up; use sight glass as reference. Standards/Certificates: ATEX zone 1 (II 2G Ex h IIC T5 Gb X -10 °C Ta 50 °C / II 2D Ex h IIIC T100 °C Db X)
