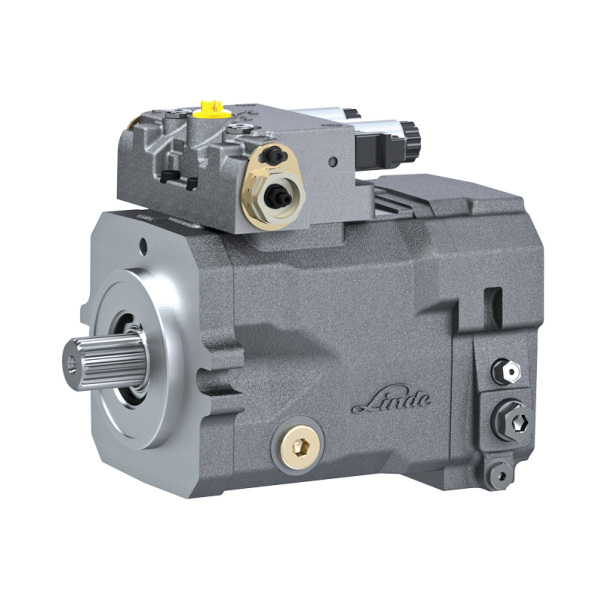

Linde HPV-02-A2-105R-CA000000A210-25017F0-DS1T23-GP0A22-EA09-R00-105/105-N

HPV‑02 is a variable axial piston pump for closed‑loop hydraulic systems. The 105 cm³/rev unit combines high power density with precise control and integrated safety functions.

Model code (partly decoded): HPV‑02 = series; A2 = model‑code release; 105 = nominal displacement 105 cm³/rev; R = clockwise rotation; CA = hydraulic‑mechanical control (torque/power/speed related). Remaining positions are customer specific.

• Nominal pressure: 450 bar
• Maximum pressure (transient): 500 bar
• Speed: max. 3200 rpm; min. operating speed 500 rpm
• Displacement: 105 cm³/rev
• Ports (size 105, E‑controls): P/S SAE 1¼”; A/B charge circuit; F feed; X/Y/Z test ports; L/U drain
• Approx. weight: 66 kg

Typical applications: hydrostatic drive and work functions in mobile machinery and industrial closed‑loop systems requiring precise control.

Series info: Linde Hydraulics HPV‑02 – variable pump for closed loops, modular control program (M, H, CA, E) and optional tandem/multiple pump arrangements.
