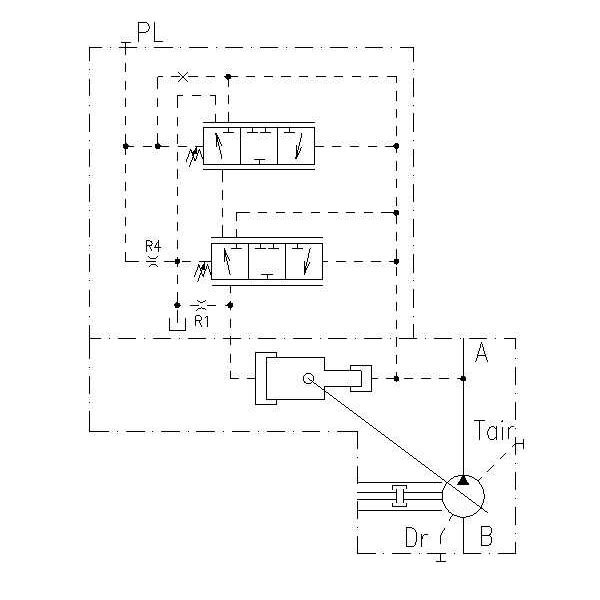

Kawasaki aksialstempelpumpe 80 cc, 320 bar, Load Sense regulator, forberedt for gjennomgående aksel and momentkontroll, leveres with blindlokk bak.

Product number: 699769

Log in to see prices
More than 5 in stock Special order – send inquiry Fewer than 5 in stock
kawasaki
Manufacturer Part No
29L83N0SK100
Displacement (cm³/rev)
80
Working pressure (bar)
320
Rotational direction

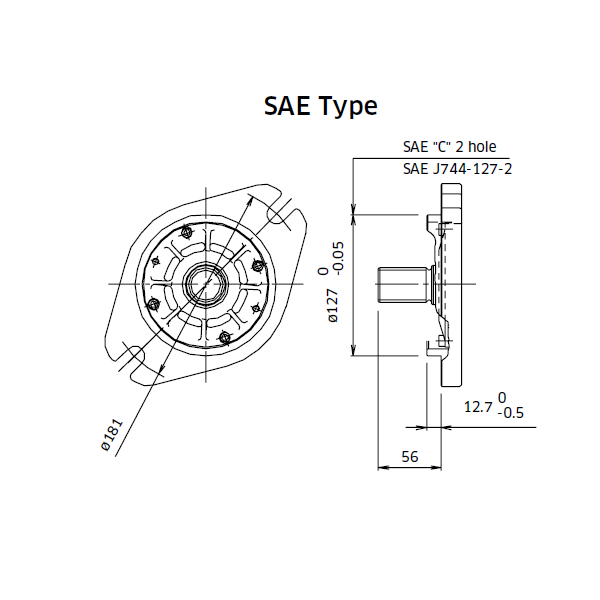

Mounting flange
SAE J744-127-2

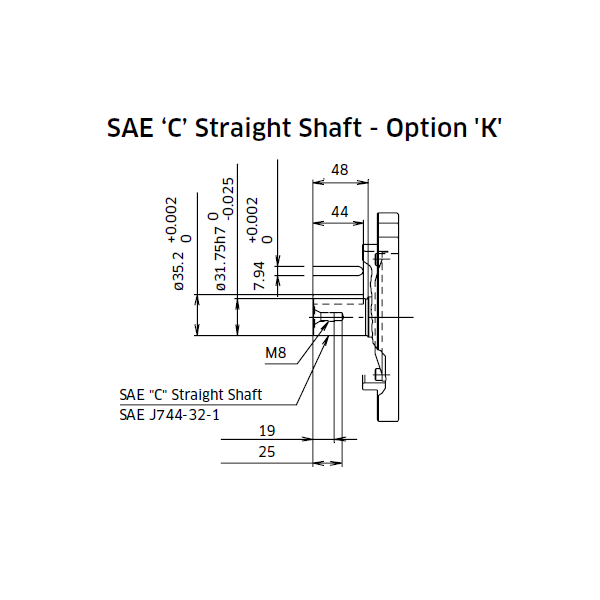

Shaft interface
SAE J744-32-1
Nominal flow (lpm)
120

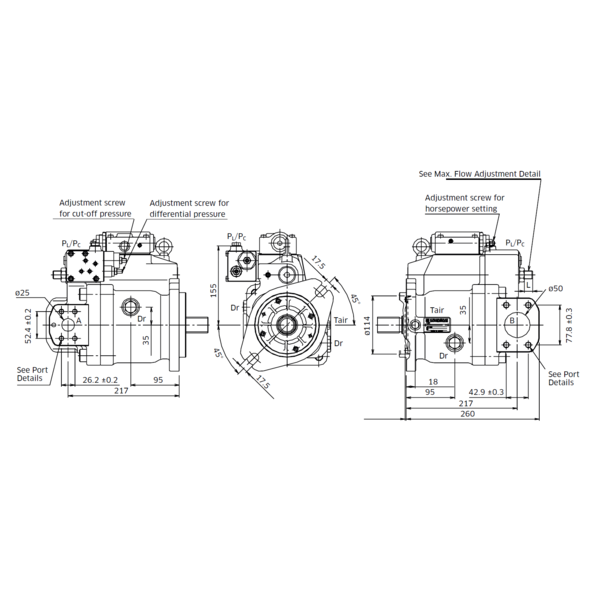

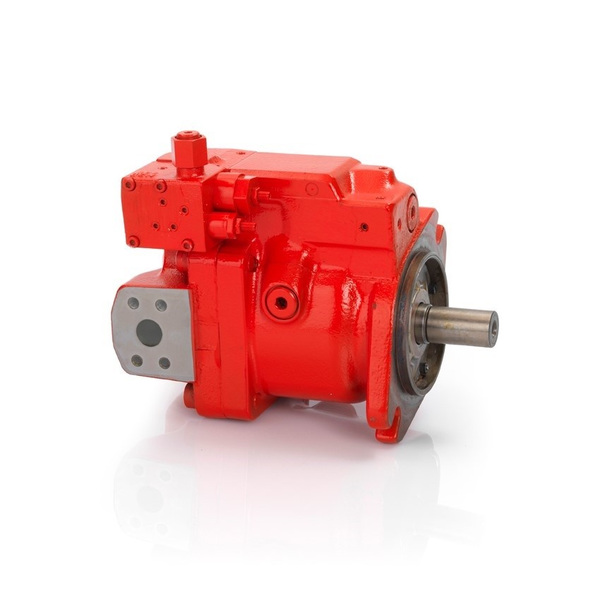

Kawasaki K3VL80 is a swash-plate axial piston pump for open circuits.

Model code K3VL80/B-1NRKM-L1/1-00 as above.

  • Operating pressure: 320 bar nominal, 350 bar peak
  • Displacement: 80 cm³/rev
  • Rotation: clockwise
  • Fluids: ISO VG 32–68
