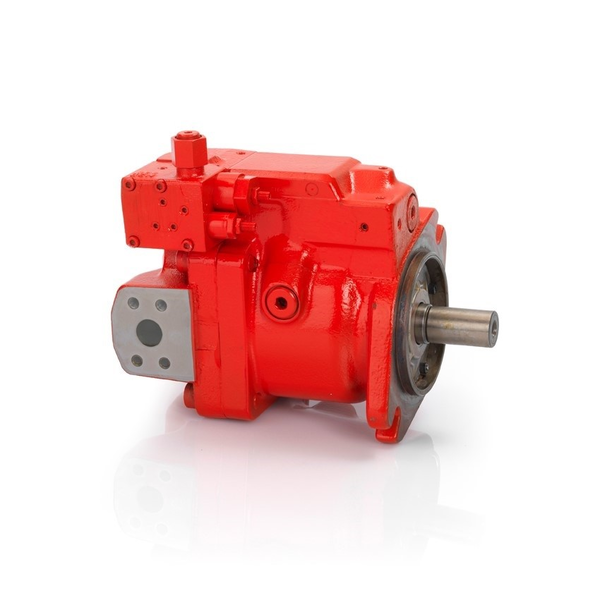

Kawasaki K3VL45/B-1NRKM-L1/1-00

Kawasaki K3VL45 is a variable displacement axial piston pump for open circuits.

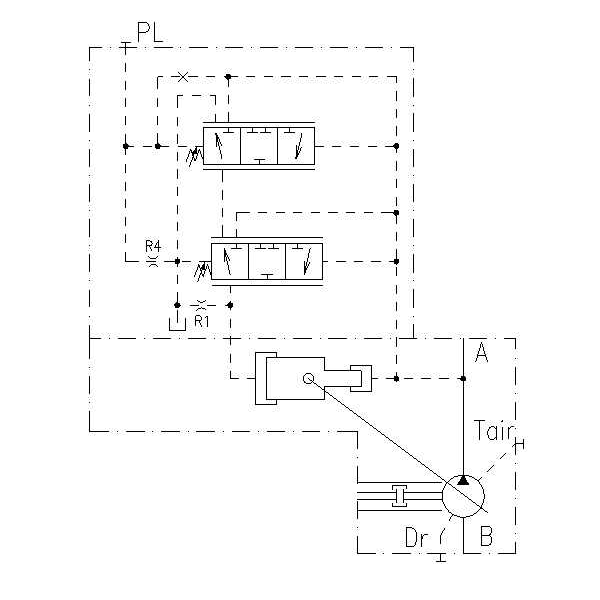

Model code K3VL45/B-1NRKM-L1/1-00 decodes: 1 = open circuit; N = side ports prepared for through-drive (blanked); R = clockwise; K = SAE key & mount; M = metric threads; L1 = load sensing + pressure cut-off (LS bleed blocked); /1-00 = prepared for torque/power limiter with blanking plate.

• Operating pressure: 320 bar nominal, 350 bar peak
• Displacement: 45 cm³/rev
• Rotation: clockwise
• Fluids: ISO VG 32–68 hydraulic oils (mineral/HEES/HEPG)
