Kawasaki aksialstempelpumpe 200 cc, 320 bar kontinuerlig trykk. Load Sense regulator, forberedt for gjennomgående aksel, leveres with blindlokk bak.

Product number: 699772

Log in to see prices
More than 5 in stock Special order – send inquiry Fewer than 5 in stock
kawasaki
Manufacturer Part No
29LK3N0SK100
Displacement (cm³/rev)
200
Working pressure (bar)
320
Rotational direction
Mounting flange
SAE J744-165-4
Shaft interface
SAE J744-44-1
Nominal flow (lpm)
300

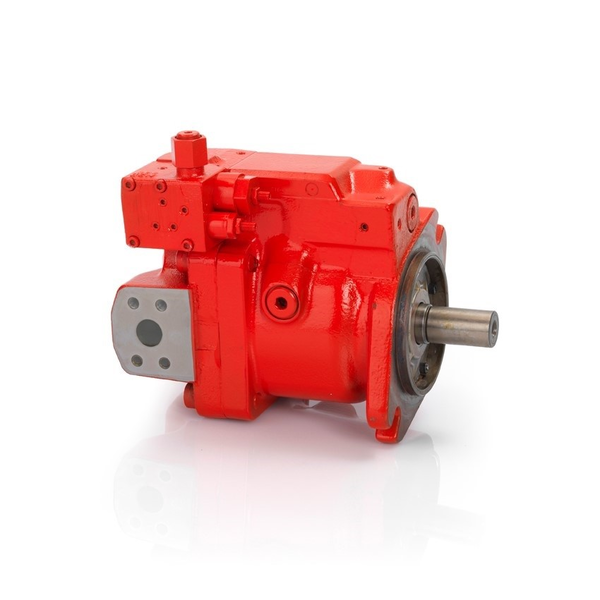

Kawasaki K3VL200 is a variable displacement axial piston pump for open circuits.

Model code K3VL200/B-1NRKM-L1/1-00 as above.

  • Operating pressure: 320 bar nominal, 350 bar peak
  • Displacement: 200 cm³/rev
  • Rotation: clockwise
  • Fluids: ISO VG 32–68
