Variabel stempelpumpe V60 N, 90 ccm, høyre rotasjon, SAE-C 4-hulls, splinesaksel 14 T 12/24 DP, NBR, LS-regulator with trykkavlastning, slagbegrensning, BSPP-porter
Product number: HWV60N09000008
Log in to see prices
More than 5 in stockSpecial order – send inquiryFewer than 5 in stock
Manufacturer Part No
7956796.00
Displacement (cm³/rev)
90
Working pressure (bar)
350
Rotational direction
Mounting flange
SAE J744-127-4
Shaft interface
SAE J744-14T-12/24DP
Nominal flow (lpm)
135

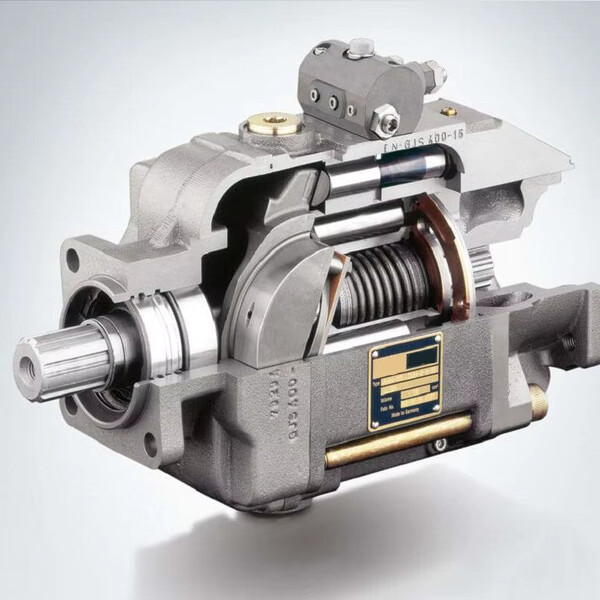

HWV60N09000008 (V60N-090) is a variable axial piston pump with Load Sense control and pressure relief. 90 cc displacement, right-hand rotation, SAE-C 4-bolt flange, 14T spline shaft. Max pressure 320 bar. Includes stroke limiter and BSPP ports.
