HAWE R 9.5 A Design 6011

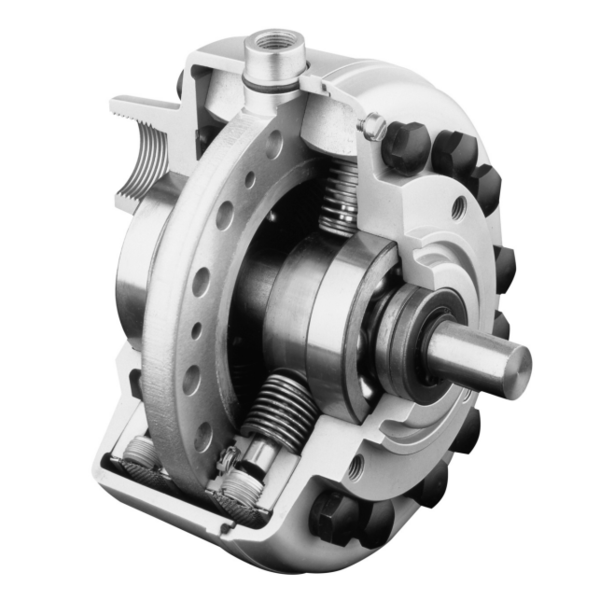

HAWE R 9.5 A Design 6011 is a radial piston pump from the R/RG series for open circuits requiring stable flow at high pressure. The R 9.5 variant has nominal displacement about 6.72 cm³/rev and delivers about 9.5 L/min at 1450 rpm. For this code the maximum operating pressure is specified up to 200 bar.

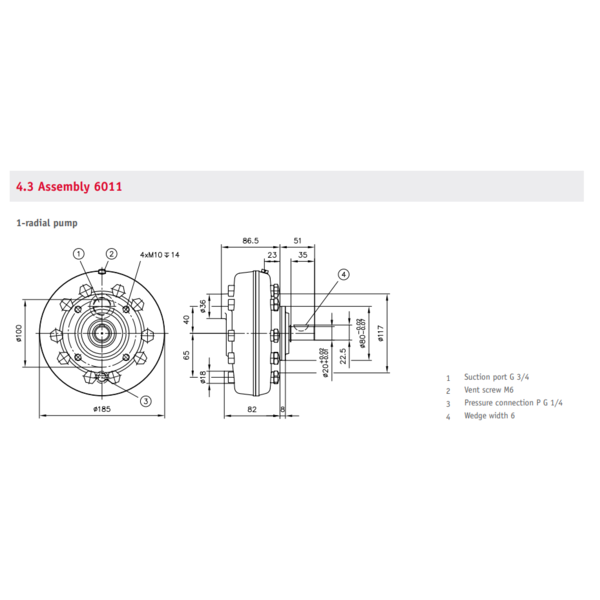

Model code: R = radial piston pump; 9.5 = approx. 9.5 L/min at 1450 rpm; “A” = seal arrangement for slightly pressurized suction; Design 6011 = single radial (5/7 pistons) with ISO 228 ports.

• Ports: suction G 3/4; pressure G 1/4
• Fluid: Hydraulic oil per DIN 51524, viscosity ISO VG 10–68
• Applications: presses, fixtures, test rigs and compact power packs

The HAWE R/RG series consists of precision radial piston pumps known for high efficiency and long service life in compact installations.
