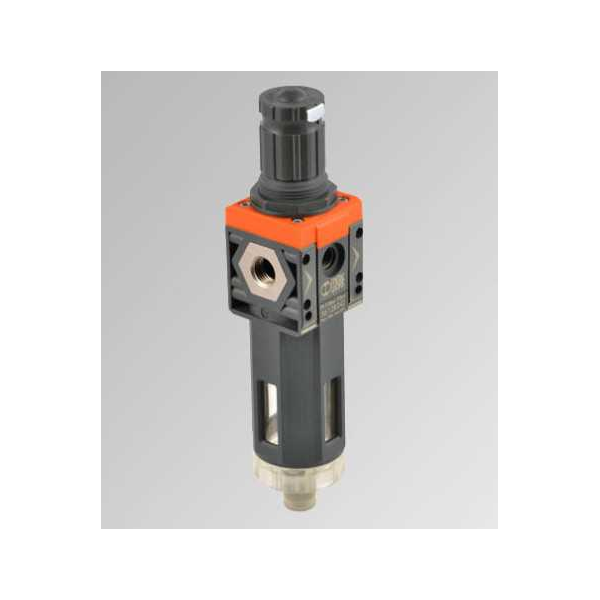

Filter regulator Syntesi 1/4" 5 µm 0-12 bar automatic drain

Name: Filter regulator Syntesi 1/4" 5 µm 0-12 bar automatic drain
Brand: metalwork
SKU: 5612B462

Filter‑regulator 1/4". Filtration: 5 µm. Setting range: 0-12 bar. Drain: automatic. Capacity: 2000 Nl/min at ΔP 0.5 bar.

Product number: 5612B462

More than 5 in stock Special order – send inquiry Fewer than 5 in stock

Manufacturer Part No: 5612B462
Drain type: Auto
Filtration level (µm): 5
Flow at max DP (lpm): 2000
Pressure range (bar): 0-12
Port size and type: 1/4" BSP
Working pressure (bar): 15
Product series: Syntesi

Combined filter‑regulator for filtration and pressure control.
Key data:
- Filtration: 5 µm.
- Port size: 1/4".
- Setting range: 0-12 bar.
- Drain: automatic.
- Capacity: 2000 Nl/min at ΔP 0.5 bar (6.3 bar).
Mounting:
- Install vertically with the bowl facing down.
- Follow the flow-direction arrow (IN → OUT).
- Ensure access for drain (manual/automatic) and element replacement.
- Mount on wall, with bracket, or supported by piping.
Standards/Certificates:
ATEX zone 2 (II 3G Ex h IIC T5 Gc -10 °C Ta 50 °C / II 3D Ex h IIIC T100 °C Dc)
