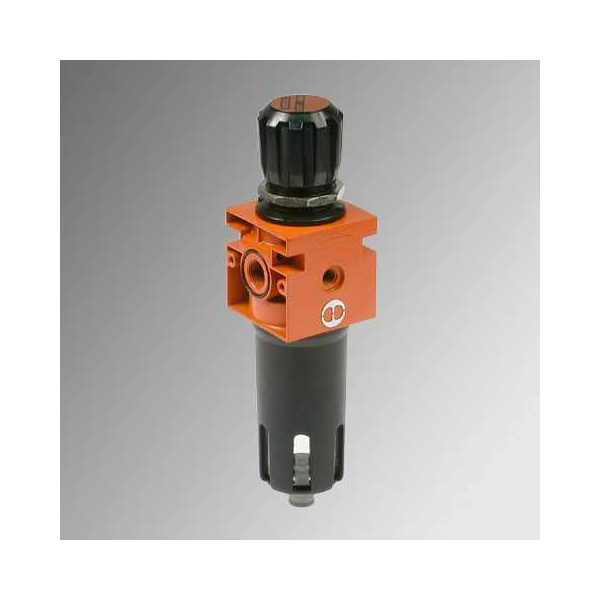

Filter regulator New Deal 1/2" 20 µm 0-8 bar manual

Name: Filter regulator New Deal 1/2" 20 µm 0-8 bar manual
Brand: metalwork
SKU: 1425030

Filter‑regulator 1/2". Filtration: 20 µm. Setting range: 0-8 bar. Drain: manual. Capacity: 2500 Nl/min at ΔP 0.5 bar.

Product number: 1425030

More than 5 in stock Special order – send inquiry Fewer than 5 in stock

Manufacturer Part No: 1425030
Drain type: Manual
Filtration level (µm): 20
Flow at max DP (lpm): 2500
Pressure range (bar): 0-8
Port size and type: 1/2" BSP
Product series: NEW DEAL

Combined filter‑regulator for filtration and pressure control.
Key data:
- Filtration: 20 µm.
- Port size: 1/2".
- Setting range: 0-8 bar.
- Drain: manual.
- Capacity: 2500 Nl/min at ΔP 0.5 bar (6.3 bar).
Mounting:
- Install vertically with the bowl facing down.
- Follow the flow-direction arrow (IN → OUT).
- Ensure access for drain (manual/automatic) and element replacement.
- Mount on wall, with bracket, or supported by piping.
Standards/Certificates:
ATEX zone 1 (II 2G Ex h IIC T5 Gb X -10 °C Ta 50 °C / II 2D Ex h IIIC T100 °C Db X)
