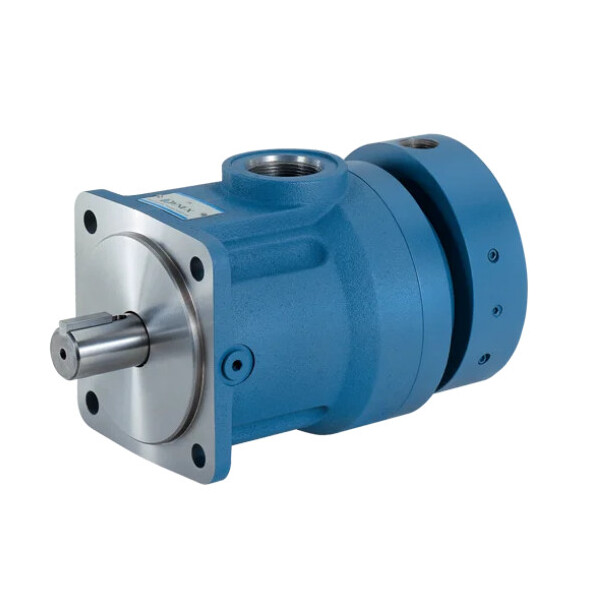

Dynex PF3015H-XVB-10

The PF3015H is a fixed-displacement, high-pressure checkball piston pump in the Dynex PF3000 series. It typically delivers 10.0 gpm (37.9 L/min) at 1800 rpm at rated pressure and is designed for 6,000 psi (420 bar) continuous and up to 10,000 psi (700 bar) maximum pressure.

Model code decoding: PF30 = PF3000 series; 15 = approx. 10.0 gpm at 1800 rpm; H = high-pressure version; XV = fluorocarbon seals with high-pressure shaft seal; B = outlet G 3/4 (BSPP); 10 = design number.

• Ports: Inlet No.24 SAE; outlet G 3/4 (BSPP) for H option.
• Seals: XV (fluorocarbon with high-pressure shaft seal).
• Speed: Rated 1800 rpm; max about 2500 rpm (pressurized inlet may be required).
• Mount/Shaft: SAE C 4-bolt pattern; standard keyed shaft.
• Fluid/Viscosity: Premium mineral oil; operation 20–70 cSt recommended; higher start-up viscosity permissible within datasheet limits.
• Function: Bi-directional shaft rotation; outlet flow direction constant regardless of rotation.
• Weight: approx. 28 kg.

Applications: High-pressure hydraulic systems, process and test equipment, steel mills, and demanding industrial use.

The PF3000 family uses an eight-piston checkball design for high volumetric efficiency and durability at high pressures.

"
