DRVAB-06-3-30.D-Exm-18

DRVAB-06-3-30 — Pressure Reduction (8 L/min)

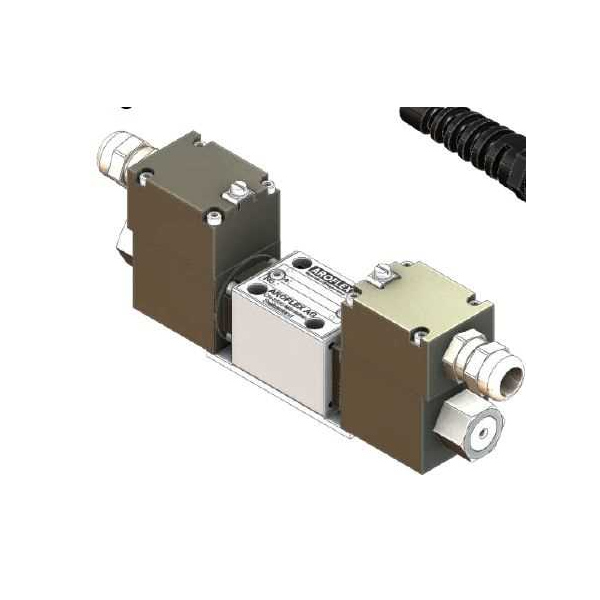

Prop.pressure reduction valve, sub-plate valve for hydraulic circuits. Prop.pressure reduction valve double DRVAB-06-3-30.D-Exm-18, NG6 / Cetop 3, 8l/m, 24V, 0-30Bar, ATEX.

Key specifications
- Interface: Cetop 3
- Flow capacity: 8
- Working pressure: 315 bar

Additional information
Preferred subplate options:

• 1501.01 Cetop 3 - 1 element, port under
• 3001.00 Cetop 3 - 1 element, port side
• EM103/238Y Cetop 3 - 2 elements
• EM103/338Y Cetop 3 - 3 elements
• EM103/438Y Cetop 3 - 4 elements
• EM103/538Y Cetop 3 - 5 elements
