Directional valve for hydraulic circuits

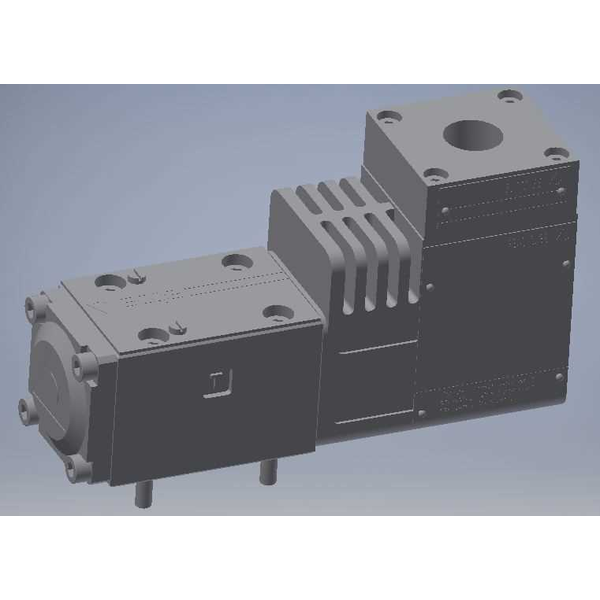

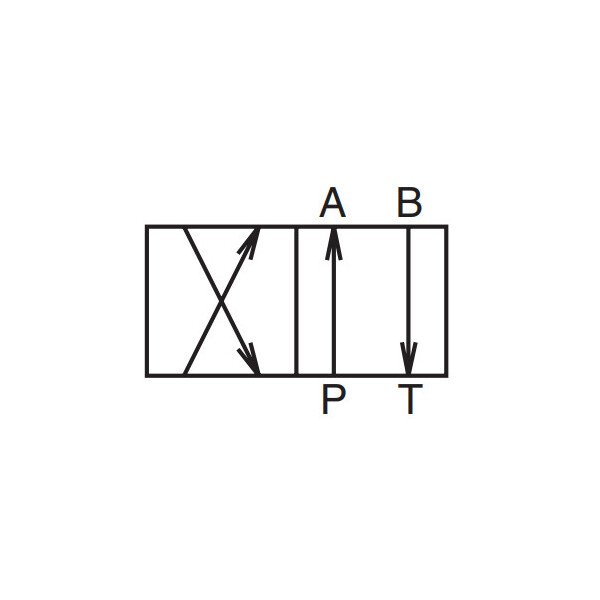

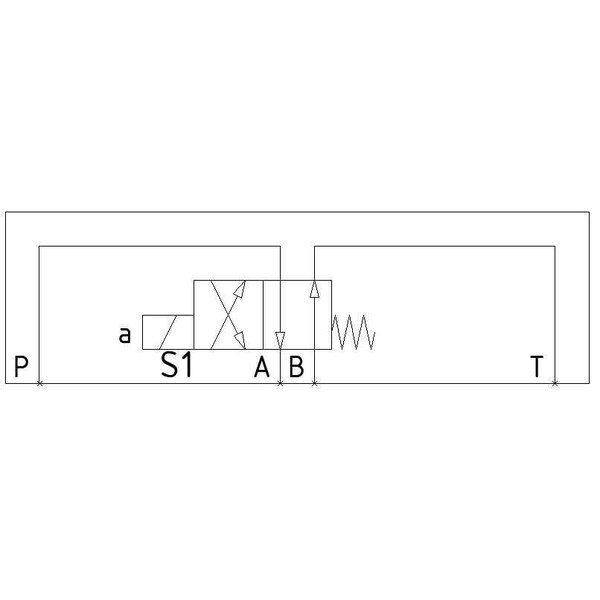

- 4/2 way valve DHA-0631/2-M-24; NG6 / CETOP 3; 24 V; ATEX-IECEx (ATOS)
Key specifications
- Interface: CETOP 3
- Flow capacity: 70 l/min
- Working pressure: 350 bar
Additional information
- Atos DHA direct-operated spool; multi-cert ATEX, IECEx, EAC (Group II); SIL compliance with IEC 61408; stainless executions available; Servi is Norway’s biggest dealer. Preferred subplates: 1501.01 (under), 3001.00 (side), EM103/238Y (2 elem), EM103/338Y (3 elem), EM103/438Y (4 elem), EM103/538Y (5 elem).
