Cooler, air/oil ASA1508SA8G

Cooler, air/oil ASA1508SA8G

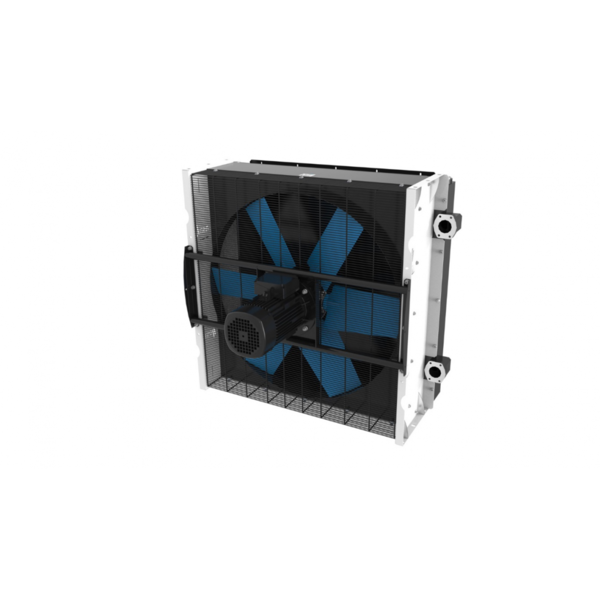

ASA1508SA8G High line AC drive air-oil cooler 5kW/°C - 800lpm - 5,4bar - 3-phase, 4,00kW

Product number: SAC-HL-AC-05

Log in to see prices
In stock Out of stock Few in stock
Asa
Manufacturer Part No
ASA1508SA8G
Flow (lpm)
800
Cooling capacity (kW)
5
Diff.pressure at max flow (bar)
5.4
IP Class
IP55
Fluid type
Hydraulic oil
Voltage (V)
230/400V AC 3P 50Hz
Working pressure (bar)
16
Port size and type
SAE 2,5''

High Line series air/oil cooler designed for high-performance hydraulic systems.

  • It is engineered to handle large cooling capacities and high oil flow rates, making it ideal for demanding industrial and mobile applications.
  • Ideal for industrial hydraulics, mobile machinery, and heavy-duty systems.
  • Model:ASA1508SA8G Motor Power: 4,0 kW Voltage Supply: 400/690V 4,00 kW Cooling Capacity: 5,0 kW/°C@800 l/min.
  • Protection Class: IP55 Cooling Medium: Hydraulic oil Weight: 328 kg Noise level: 88 dB Air flow: 10,1 kg/s Max Working Pressure: 26 bar
