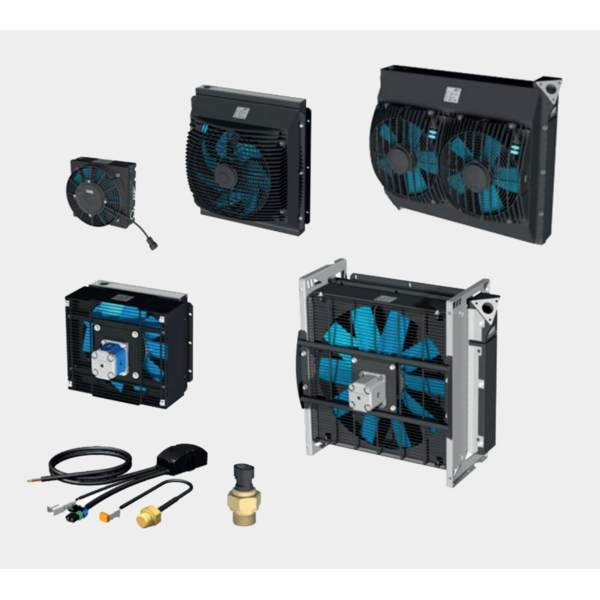

Air/oil cooler from the ASA Series, designed for high-performance hydraulic systems in mobile and industrial applications.
- It is part of a robust product line known for durability, compact design, and efficient thermal management.
- Compact and rugged design ideal for equipments like excavators, cranes and agricultural machinery.
- General Description.
- Model: ASA0567AH11 Drive Type: Hydraulic motor (11 cm³/rev) Motor Power: Up to 1.86 kW Oil Pressure: Up to 54 bar Oil Flow: Up to 23 l/min Rotation Speed: Up to 2000 rpm Air Flow: Up to 2.90 kg/s Noise Level: Up to 90 dB Weight: Approx.: 74.1 kg Temperature Range: –20°C to +80°C (oil temperature) Radiator Material: Aluminum with wavy fins Compatible Fluids: Oil and water/glycol mixtures Bypass Valve: Optional internal bypass (2 bar)
