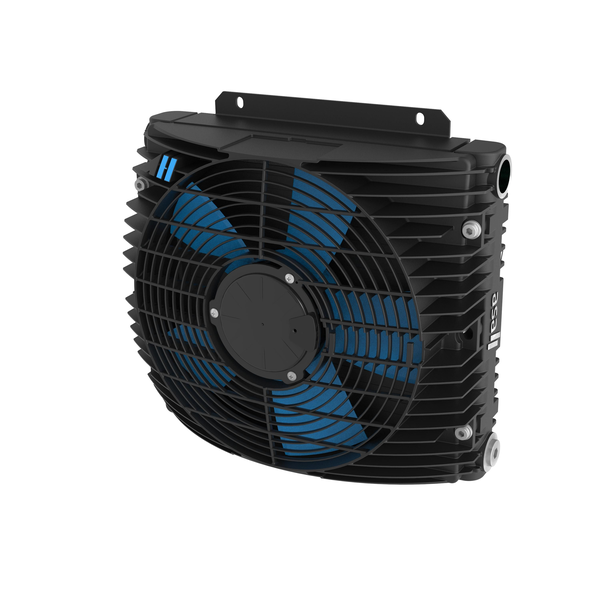

Air/oil cooler from the ASA Series, designed for high-performance hydraulic systems in mobile and industrial applications.
- It is part of a robust product line known for durability, compact design, and efficient thermal management.
- Compact and rugged design ideal for equipments like excavators, cranes and agricultural machinery.
- General Description.
- Model: ASA0367AD02 Voltage: 24V DC Motor Power: 2 × 0.30 kW (total 0.60 kW) Current Draw: 2 × 11.4 A (total 22.8 A) Protection Class: IP68 Air Flow: 1.53 kg/s Noise Level: 84 dB Weight: 41.7 kg Radiator Material: Aluminum Air Fin Shape Wavy Cooling Style Radiator Style C Working Temp.
- Range –20°C to +80°C (oil temperature) Bypass Valve Optional internal bypass (2 bar standard; other settings available)
