3-43 — Pressure Relief (16 L/min) Prop.pressure relief valve, sub-plate.
Product number: 784272
3-43 — Pressure Relief (16 L/min)

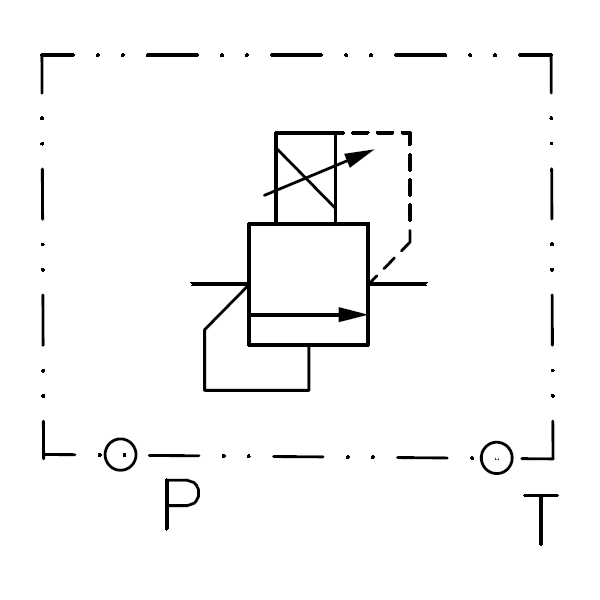

Prop.pressure relief valve, sub-plate valve for hydraulic circuits. Prop.pressure relief valve AMPR 3-43/-X 24 TEX 4 70 FM, NG6 / Cetop 3, 16l/m, 24V, 5-270Bar, ATEX/IECEx/CSA.
Key specifications
- Interface: Cetop 3
- Flow capacity: 16
- Working pressure: 350 bar
- Adjustable pressure range: 5–270 bar
Additional information
- AMPR 3-43/-X 24 TEX 4 70 FM
Prop.pressure relief valve, sub-plate
Pressure range: 5-270 bar, internal pilot +70 degree ambient temp, NG6 valve

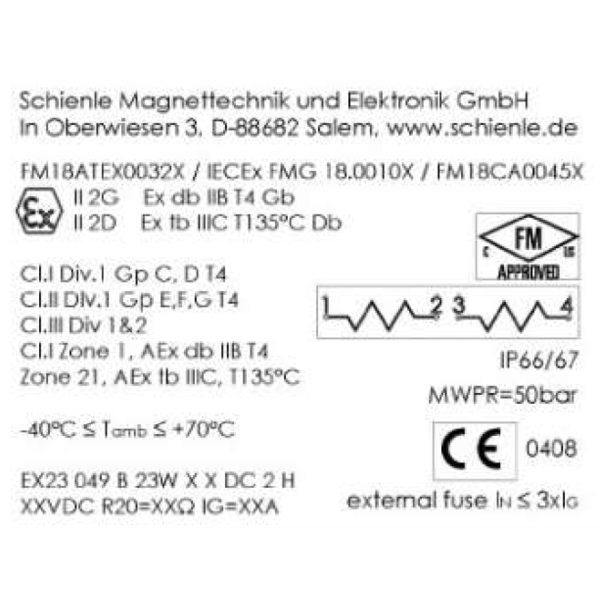

With EX23 4-PIN TERM.BOX 70 FM Solenoid - B41/2017
AMPR is an ATEX approved proportional relief valve using high quality technology from Hawe.
Well suited for external control of LS pressure signal from Hawe PSL/PSV(F).

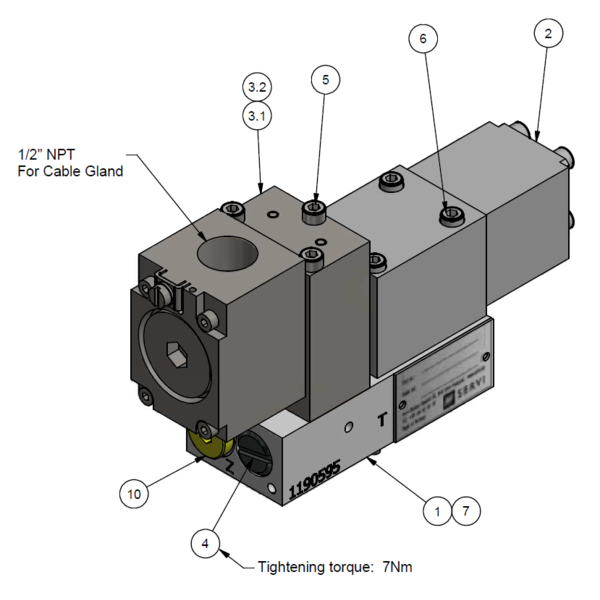

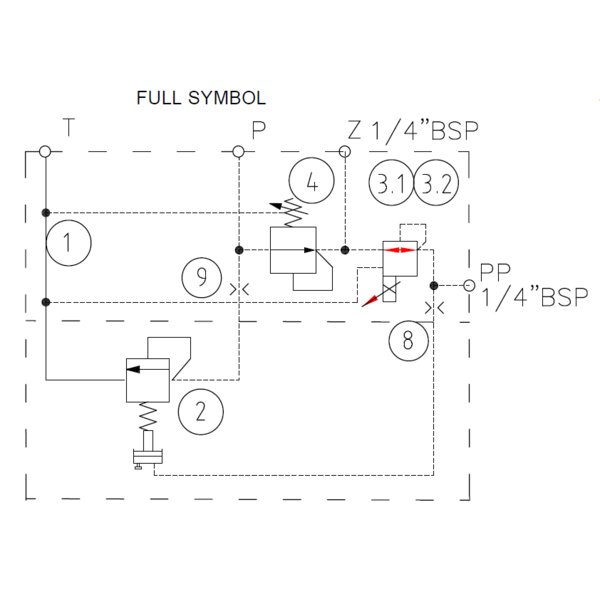

The main components are:
- Hawe NPMVP special version
- Hawe PMZ with ATEX/IECEx/CSA certified solenoid
- Hawe AM pilot supply
- Servi customized block
All together in a customized housing this gives a flexible, well-functioning valve.
Due to it's modularity the AMPR's excellent regulation capabilities may also be integrated in a customized valve block, please contact your local SERVI office for more information.
Preferred subplate options:
