740-223

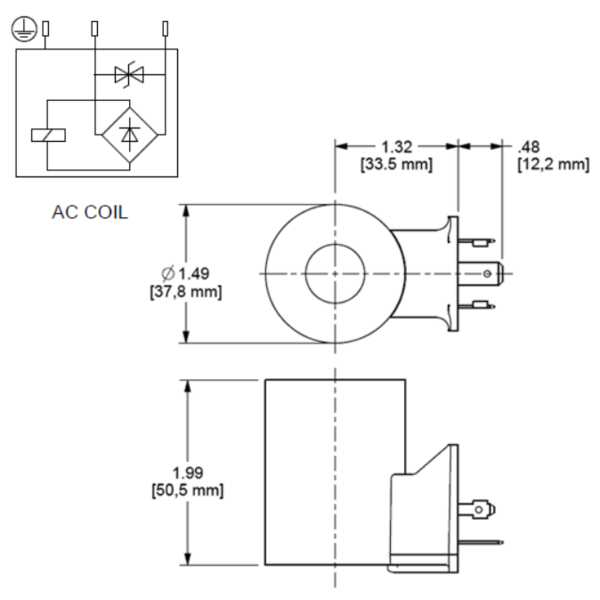

Coil 740-223, Voltage: 230 VAC 50/60, Interface: ISO/DIN 43650 Form A, 25 Watts.
Key specifications
Additional information
- 740 Series, 230 VAC 50/60 Hz, high-power coil with ISO/DIN 43650, Form A connector with TVS Diode
Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
Power cable with mating connector is required and is not included with the coil.
The coil is magnetically symmetrical and can be mounted on the solenoid tube in either direction for best cable access without affecting performance.
Coil is fully RoHS compliant. Restricted materials less than 0.1% total by weight.
The external steel shell is zinc-nickel plated and provides 1000-hour salt fog protection.
Coil includes a transient voltage suppression (TVS) diode.
IP rating for this coil is IP65/IP67.
