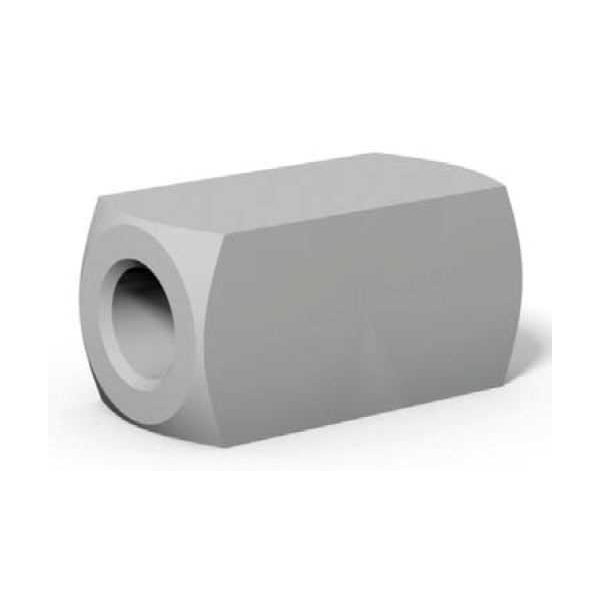

RV-DN16-G3/4-1 — Check Valve (75 L/min) Check valve, line mounted.

Product number: 96106-01-100-18683

Log in to see prices
In stock Out of stock Few in stock
mha
Manufacturer Part No
96106-01-100-18683
Flow (lpm)
75
Cracking pressure (bar)
.5
Interface/Size
Line mounted
Working pressure (bar)
500
Port size and type
BSPP 3/4''
RV-DN16-G3/4-1 — Check Valve (75 L/min)

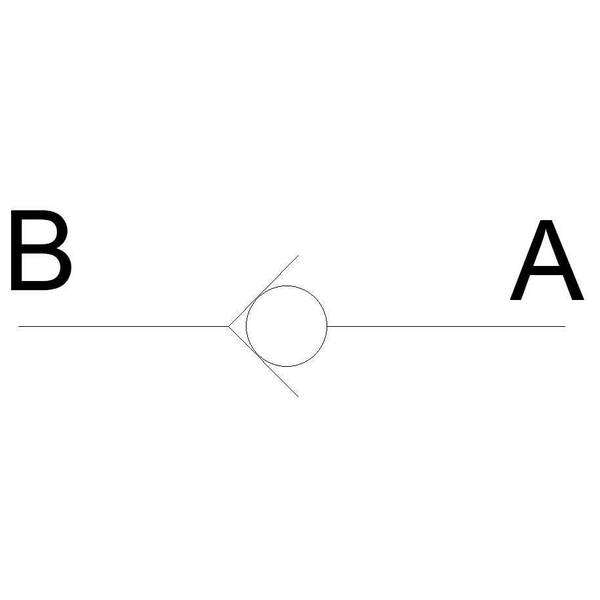

Check valve, line mounted valve for hydraulic circuits. Check valve, RV-DN16-G3/4-1 Zn, Crack Pressure 0,5 bar, 75 l/m, 500 bar.
Key specifications
- Interface: Line mounted
- Flow capacity: 75
- Working pressure: 500 bar
- Nominal bore: DN 16
- Port thread: G3/4

Additional information
- On request; also available with 3.1 certificate, stainless / 316, and springs up to 8 Bar Crack Pressure.
