DHA-0631/2-M-24

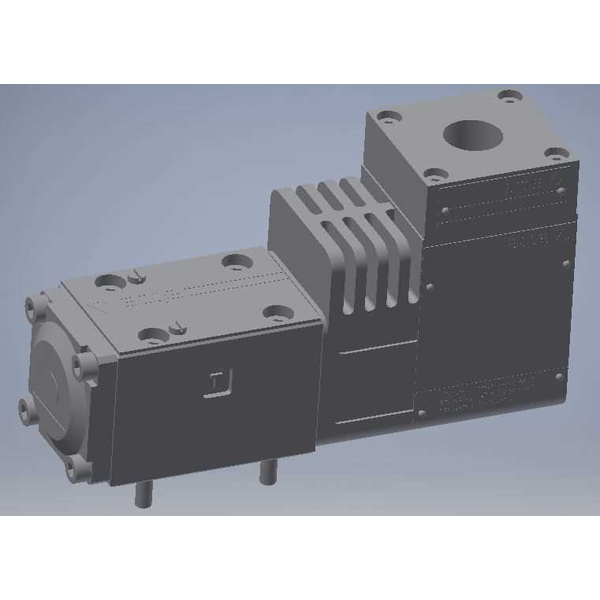

DHA-0631/2-M-24 — Directional Valve (70 L/min)

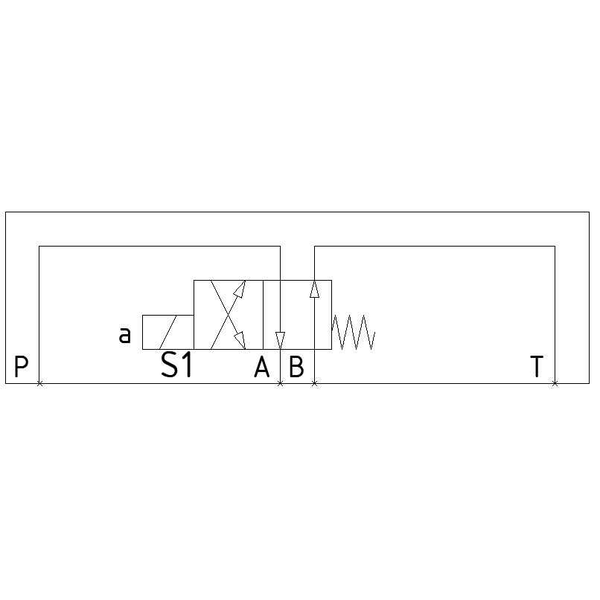

Directional valve, solenoid operated, sub-plate valve for hydraulic circuits. 4/2 way valve, DHA-0631/2-M-24, NG6 / Cetop 3, 70l/m, 24V, ATEX-IECEx, ATOS.
Key specifications
- Interface: Cetop 3
- Flow capacity: 70
- Working pressure: 350 bar

Additional information
- Atos Hydraulics DHA directional valve, direct operated spool type. Multicertification ATEX, IECEx, EAC - Group II. The Atos Hydraulics DHA valves are also SIL compliance with IEC 61408. The DHA valves can also be delivered in stainless steel excecutions for E.G water applications.
Servi is Norways biggest dealer of Atos Hydraulics.
Preferred subplate options:
1501.01 Cetop 3 - 1 element, port under
3001.00 Cetop 3 - 1 element, port side
EM103/238Y Cetop 3 - 2 elements
EM103/338Y Cetop 3 - 3 elements
EM103/438Y Cetop 3 - 4 elements
EM103/538Y Cetop 3 - 5 elements
