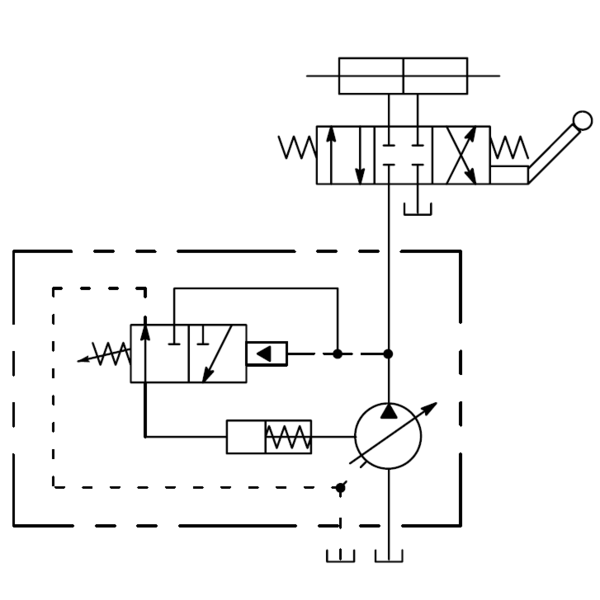

Axial piston pump, variable, 10.5 ccm, 207 Bar, side ported, load sense controller

Product number: 348493

Log in to see prices
In stock Out of stock Few in stock
danfoss
Manufacturer Part No
02-341599
Nominal flow (lpm)
14
Working pressure (bar)
207
Displacement (cm³/rev)
10.5

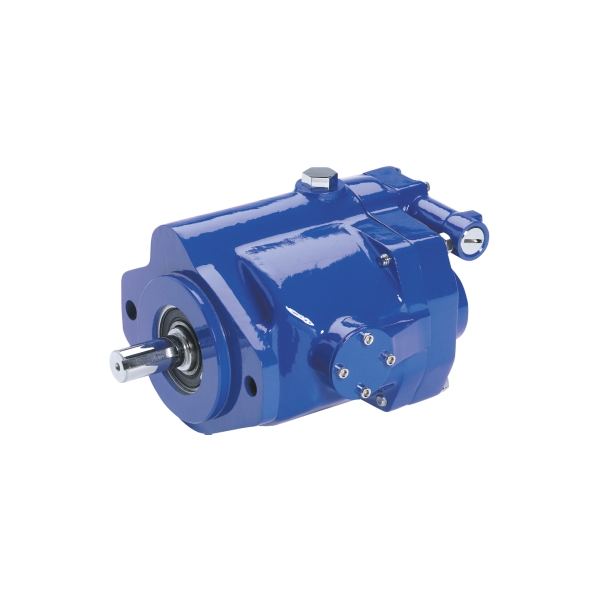

Eaton PVQ10 A2R SS1S 20 C21 12 is a compact and quiet variable axial piston pump with 10.5 cm³/rev displacement and max pressure of 207 bar. Delivers 14 l/min at 1450 rpm. Ideal for precision hydraulic applications requiring low noise and high efficiency.
