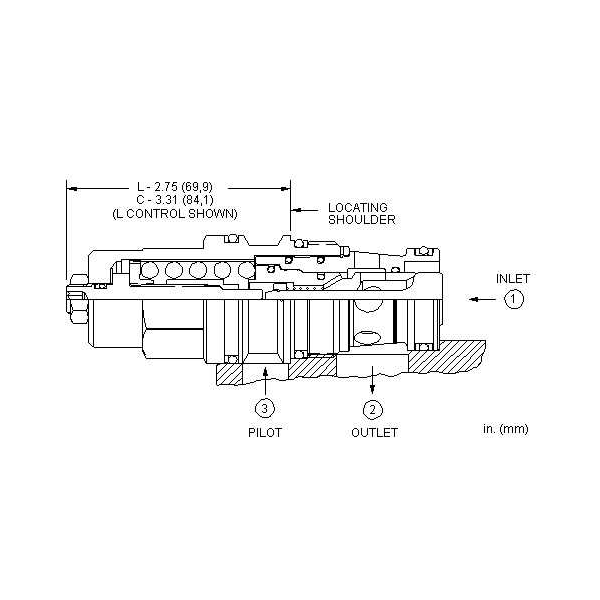

CBGA-LHN — Counterbalance Valve (T-17A, 240 L/min)

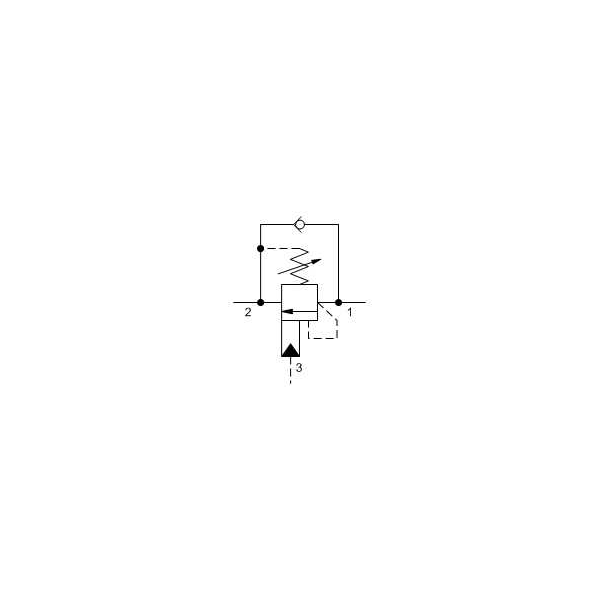

Motion control valve, cartridge cartridge for hydraulic circuits. 3-port counterbalance valve CBGA-LHN, Cavity: T-17A, Capacity: 240 l/min, Pilot ratio 3:1, Range: 70-280bar.
Key specifications
- Cavity / interface: T-17A, Cavity mounted
- Flow capacity: 240
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: HCX/S (1 cavity) or YJX/S (2 cavities)
