CBEA-LHN

CBEA-LHN — Counterbalance Valve (T-2A, 120 L/min)

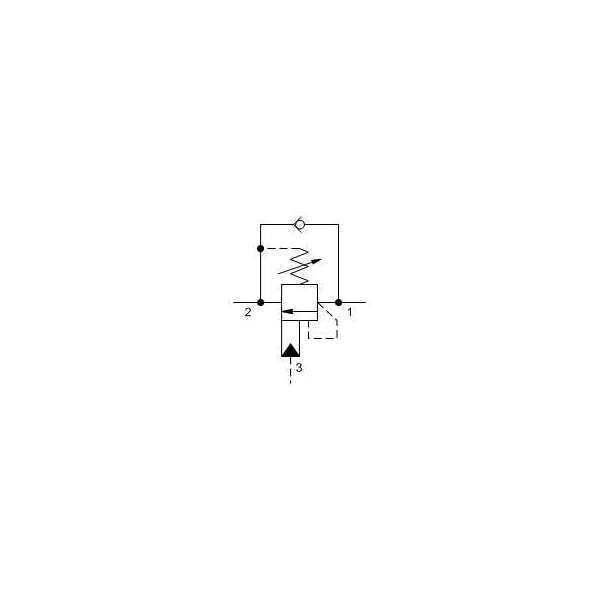

Motion control valve, cartridge cartridge for hydraulic circuits. 3-port counterbalance valve CBEA-LHN, Cavity: T-2A, Capacity: 120 l/min, Pilot ratio 3:1, Range: 70-280bar.
Key specifications
- Cavity / interface: T-2A, Cavity mounted
- Flow capacity: 120
- Working pressure: 350 bar
- Pilot ratio: 3:1
- Adjustable pressure range: 70–280 bar

Recommended housings / accessories
- Our recommended housing for this cartridge: BCW/S (1 cavity) or YAW/S (2 cavities)
