42W-06-3AR-SOR-1

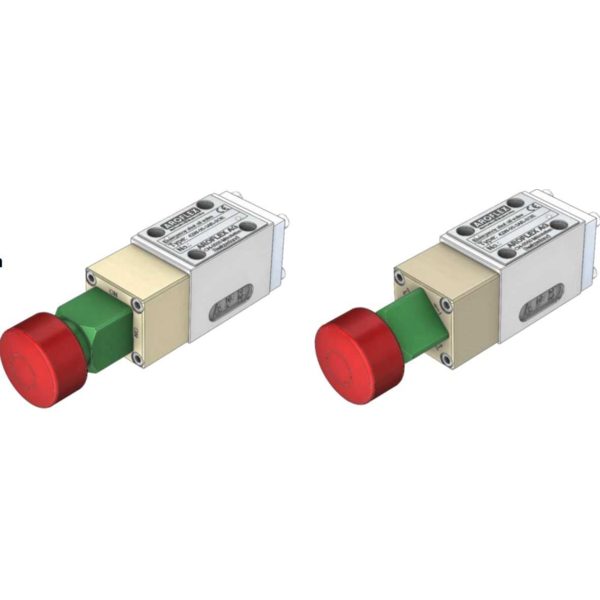

42W-06-3AR-SOR-1 — Directional Valve (60 L/min)

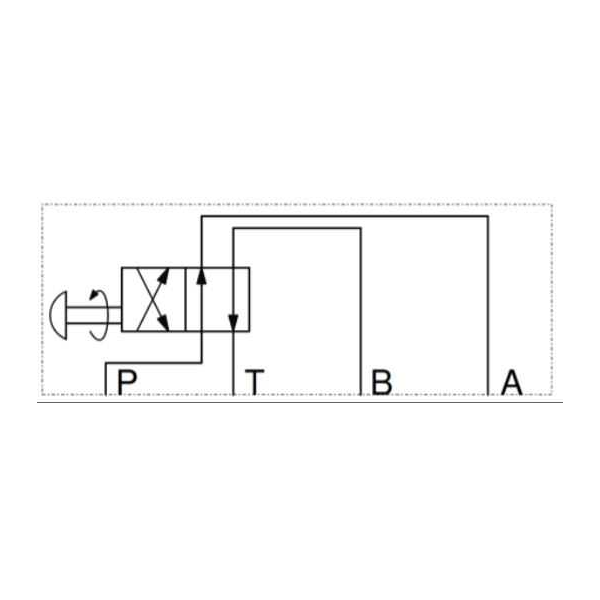

Directional valve, manually operated cetop valve for hydraulic circuits. 4/2 way emergency shut off valve, 42W-06-3AR-SOR-1 4/2, NG6 / Cetop 3, 60l/m, NBR Seals.
Key specifications
- Interface: Cetop 3
- Flow capacity: 60
- Working pressure: 350 bar
Additional information
- Preferred subplate options:
1501.01 Cetop 3 - 1 element, port under
3001.00 Cetop 3 - 1 element, port side
EM103/238Y Cetop 3 - 2 elements
EM103/338Y Cetop 3 - 3 elements
EM103/438Y Cetop 3 - 4 elements
EM103/538Y Cetop 3 - 5 elements
